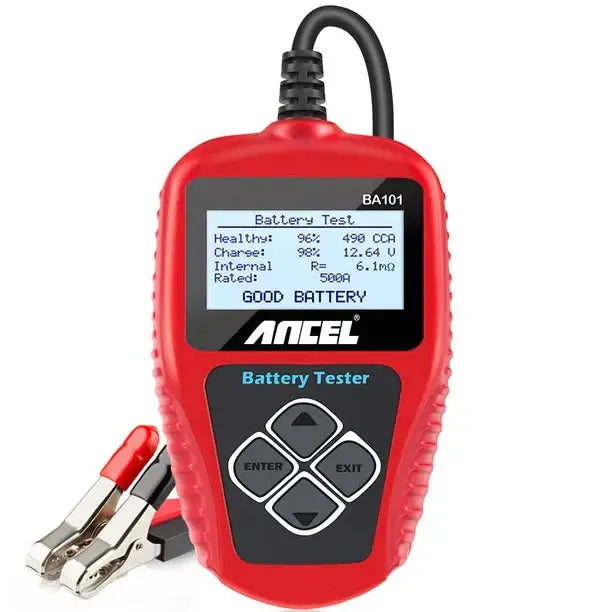

The BA101 Battery Tester Analyzer uses advanced conductance testing technology to quickly and accurately assess a vehicle’s battery health, including actual cold cranking amps (CCA), internal resistance, and overall lifespan.
It also diagnoses cranking and charging system performance, helping maintenance personnel identify faults and take corrective action promptly.
The tool warns when a battery is aging, preventing unexpected failures and extending vehicle electrical component life.
Main Features:

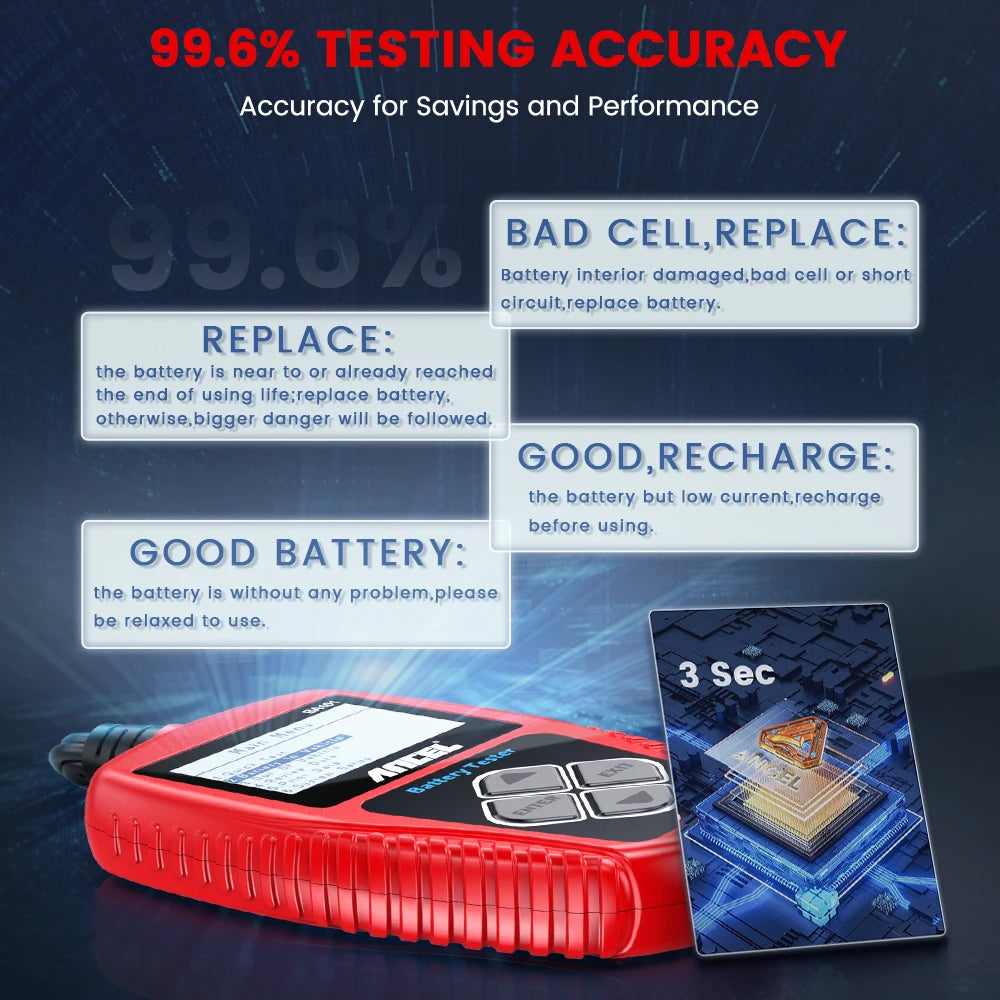

High Accuracy: Provides precise battery test results in milliseconds (tolerance ±15).
Wide Testing Range: Supports CCA 100–2000, 30–220Ah – the highest CCA range available in the market.
On/Off Vehicle Testing: Test batteries without removing them.

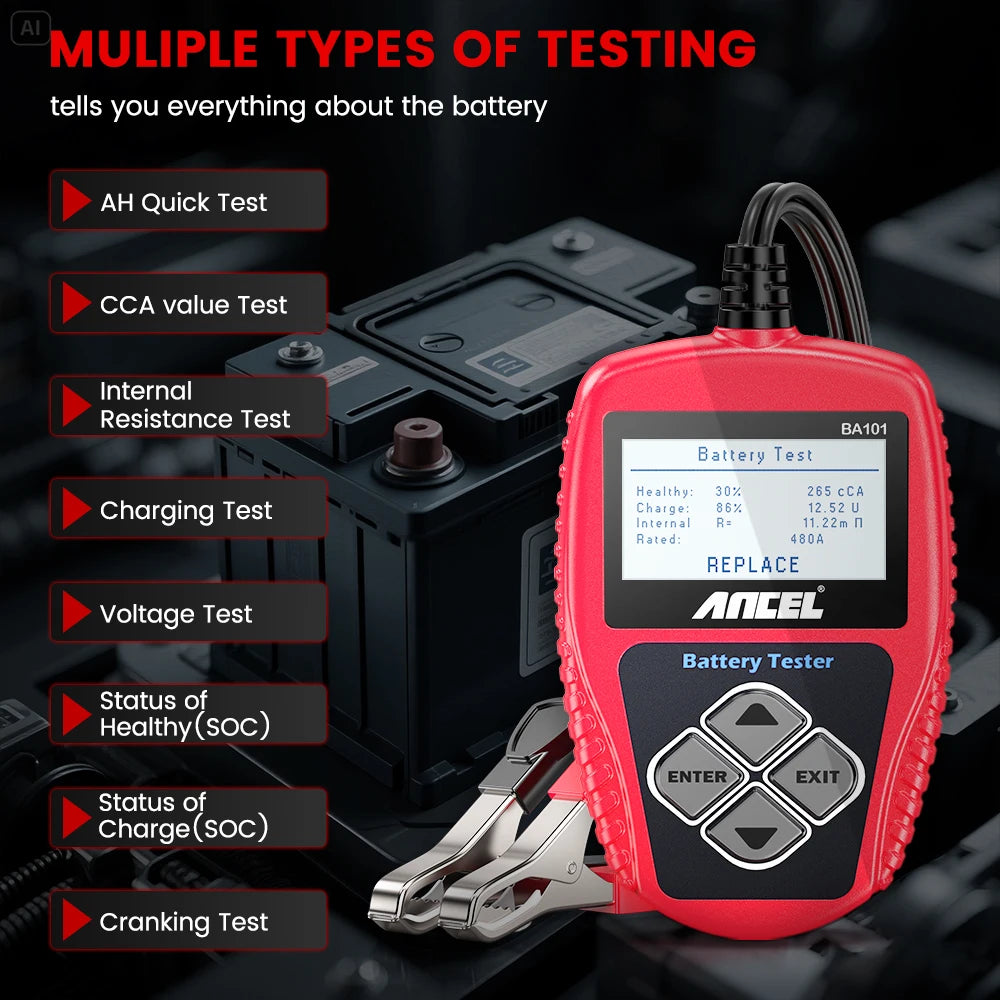

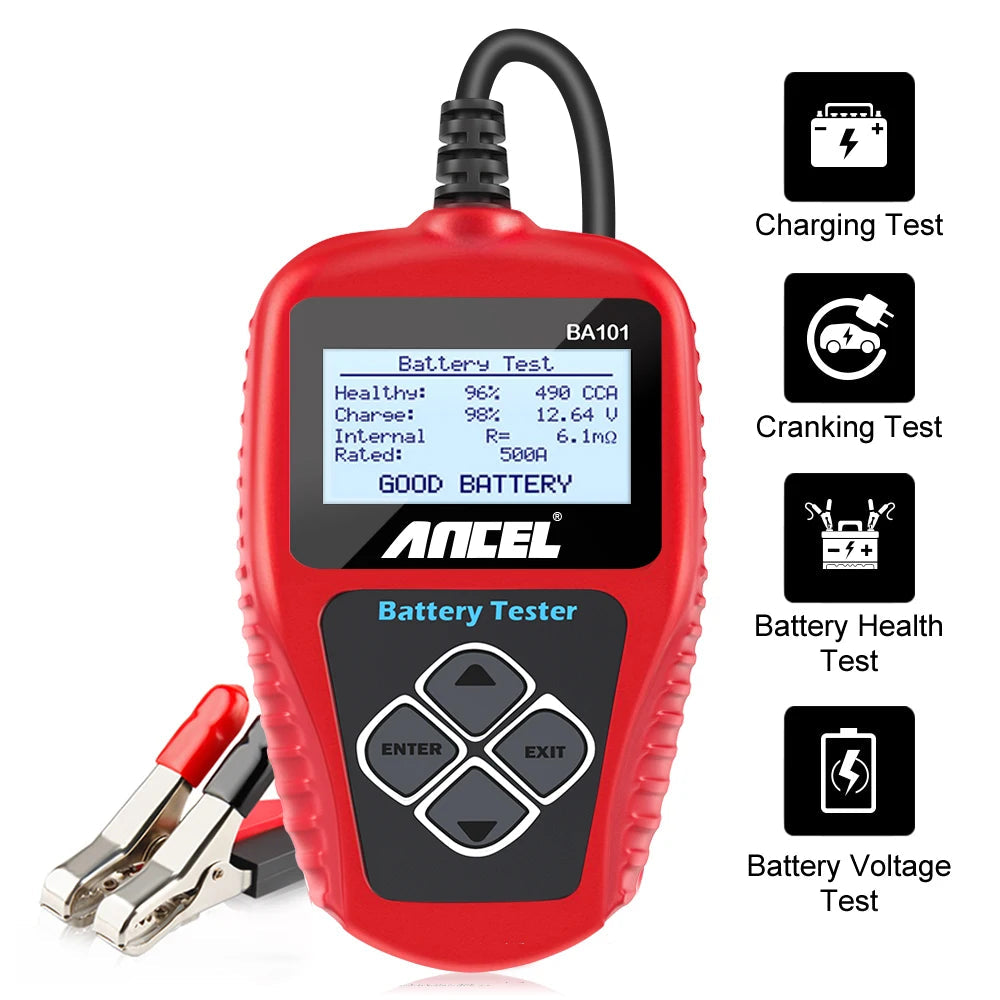

Comprehensive Battery Analysis: Measures battery life (%), internal resistance (mΩ), capacity (CCA), and provides DIN, EN, IEC info.

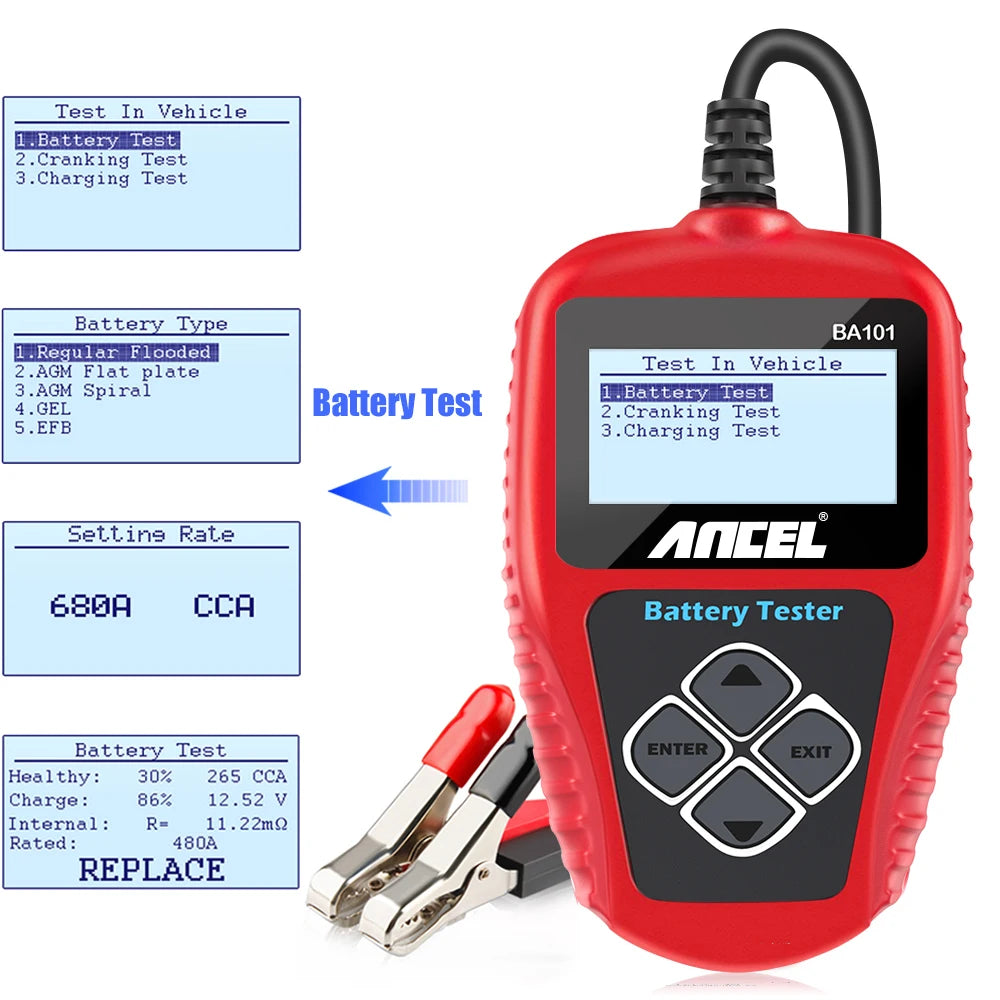

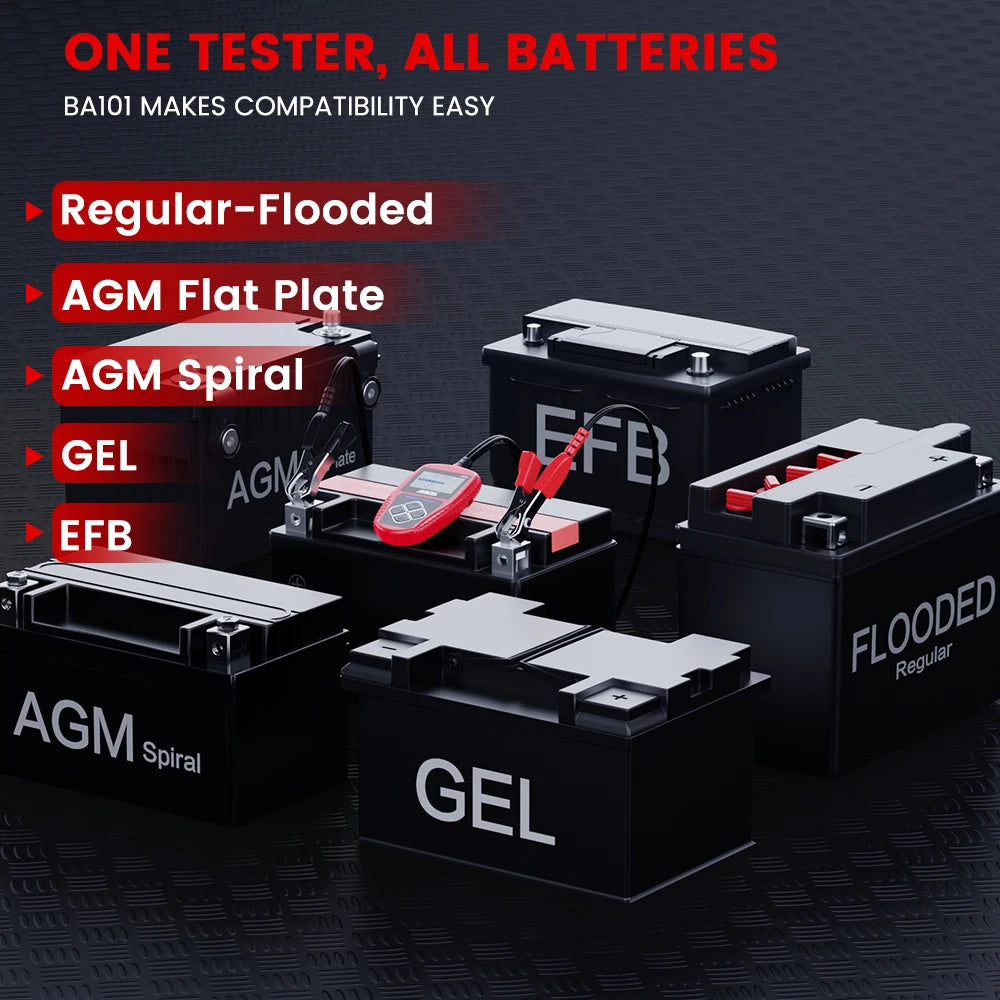

Universal Compatibility: Tests all 12V automotive lead-acid batteries – conventional, AGM flat plate, AGM spiral, Gel, EFB, and more.

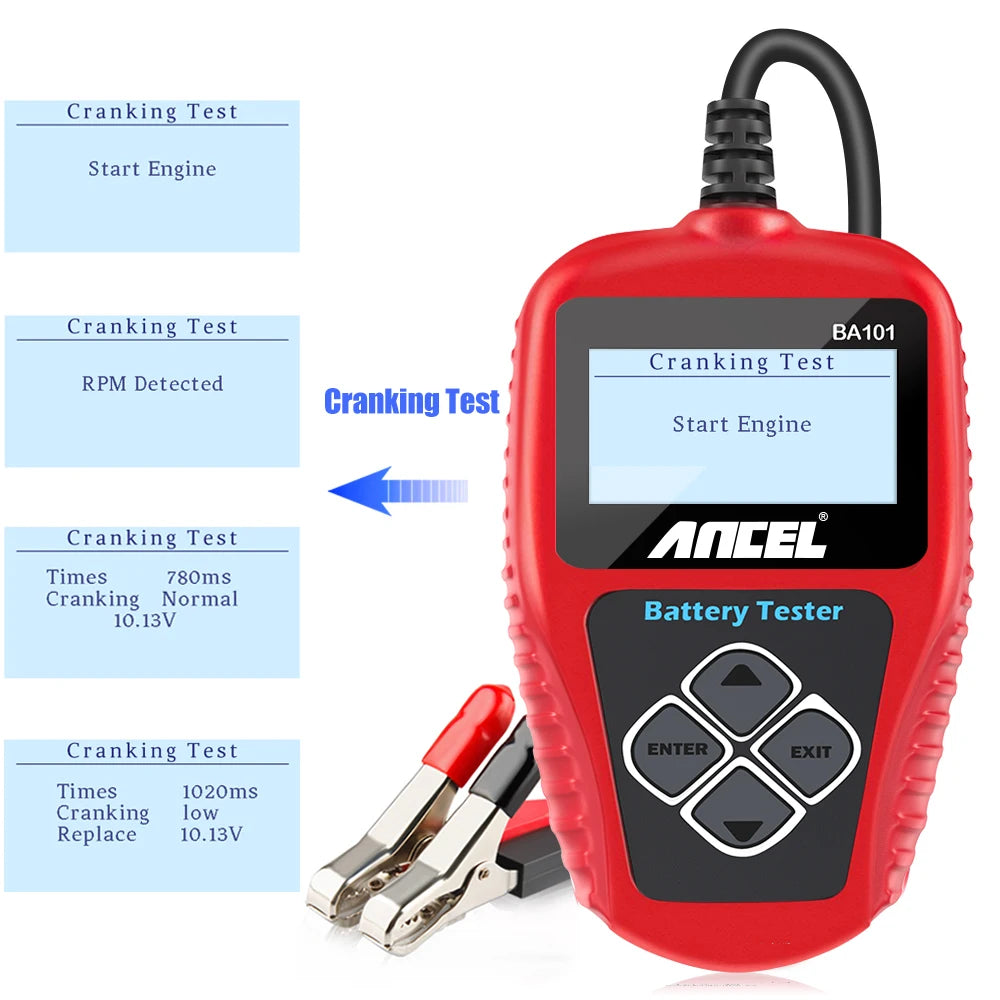

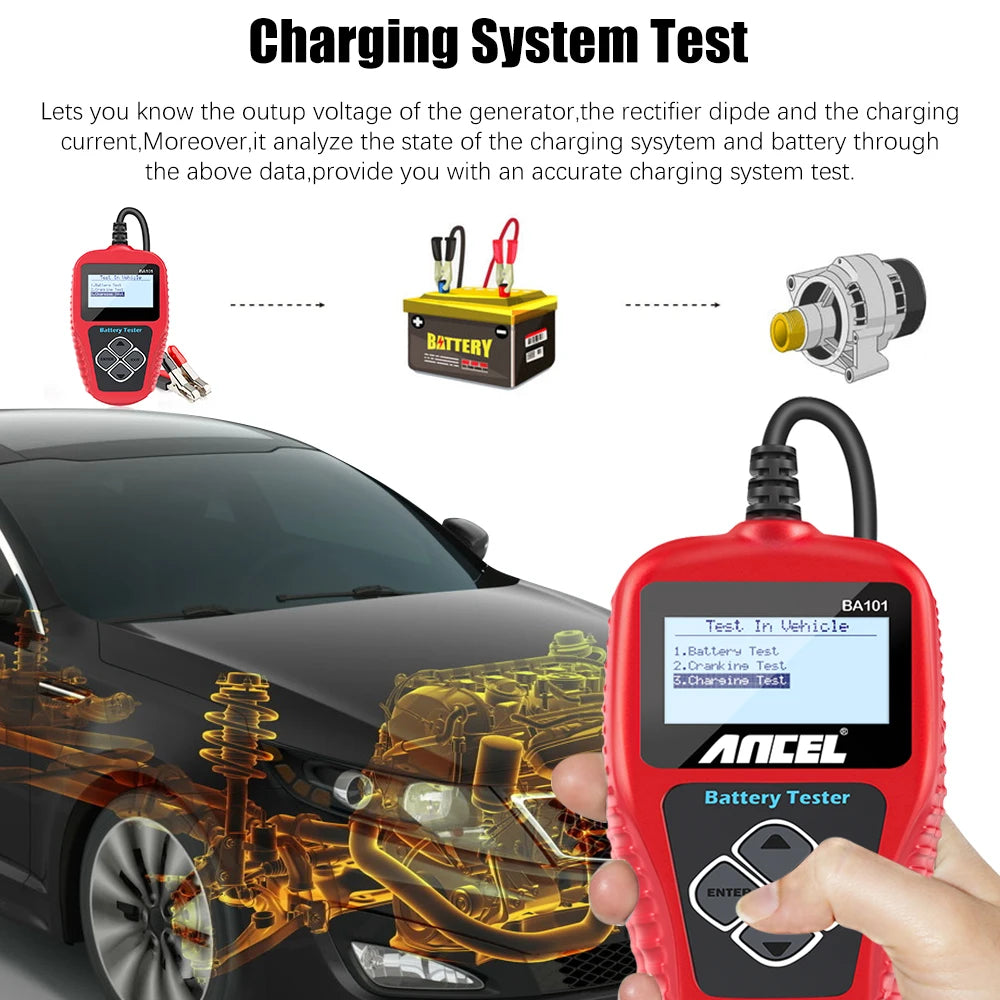

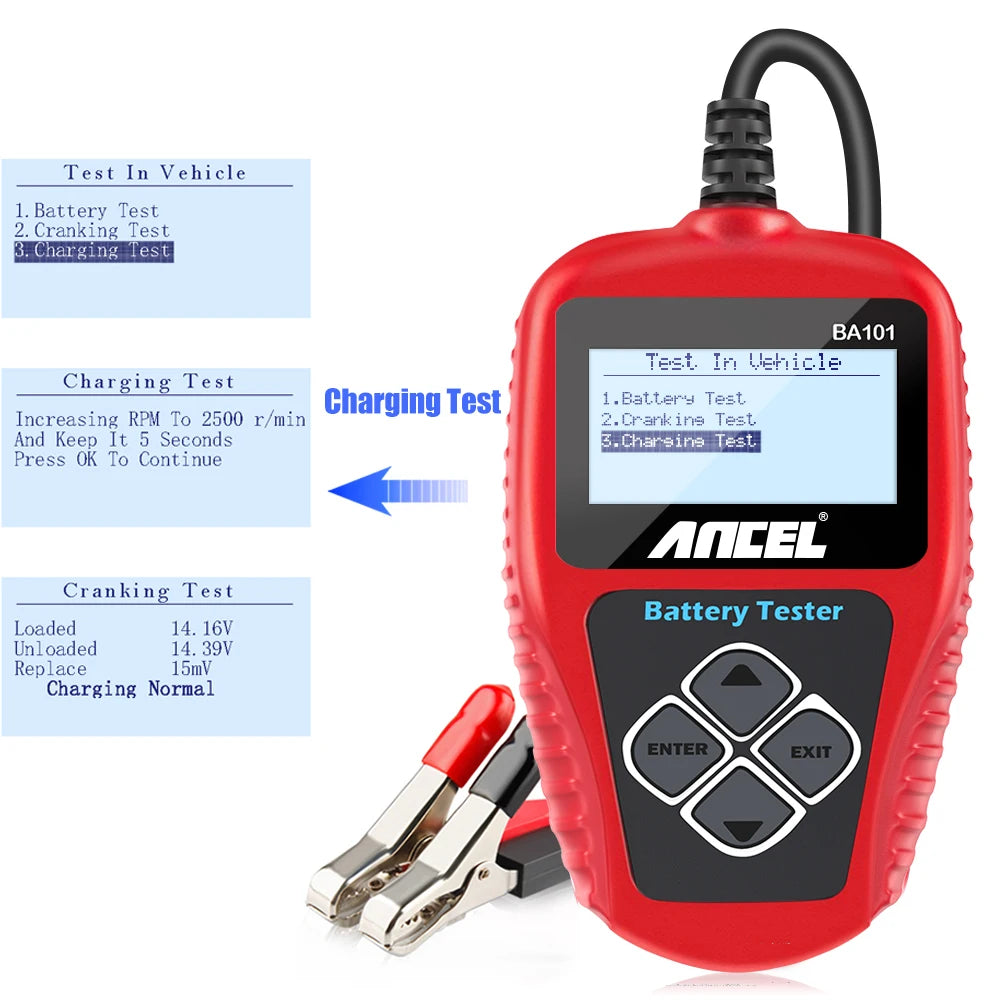

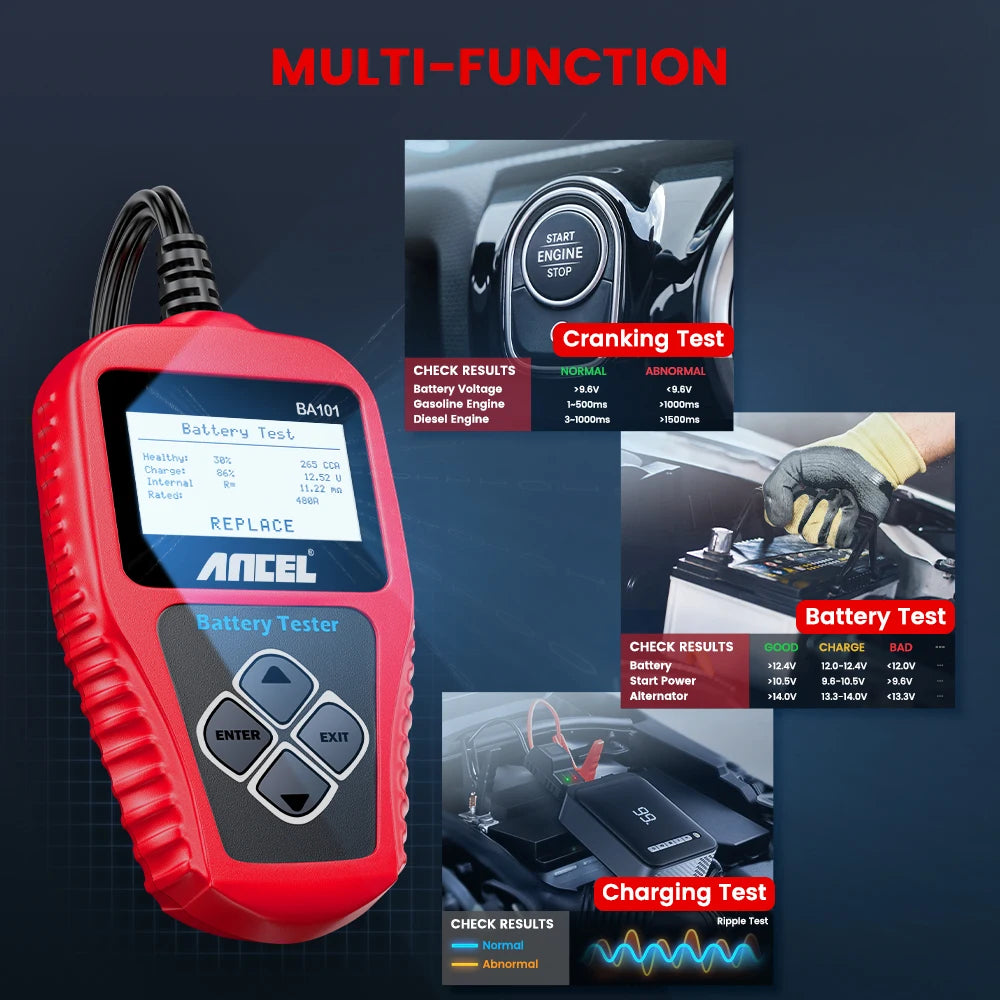

Cranking & Charging System Tests: Evaluate starter motor performance and charging system status, including load voltage, unloaded voltage, ripple, and current.

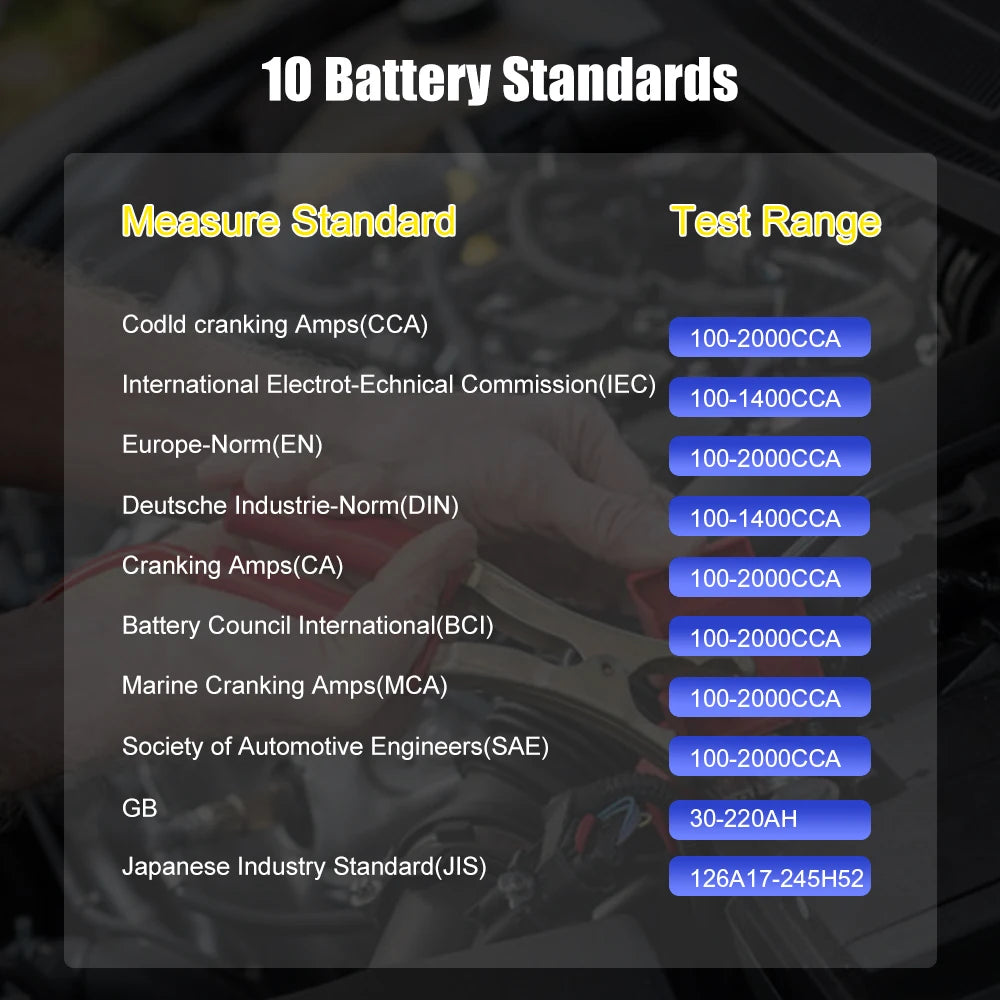

Standards Support: Complies with CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB standards.

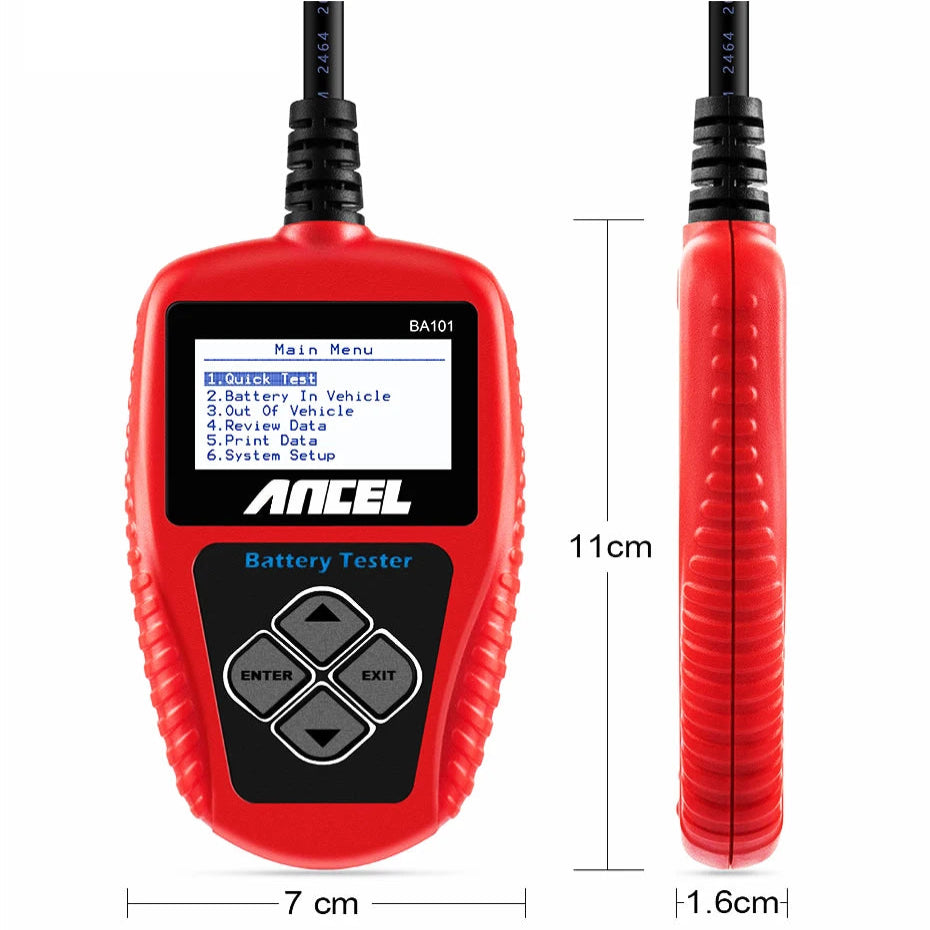

User-Friendly Display: Clear LCD screen with quick-read battery status.

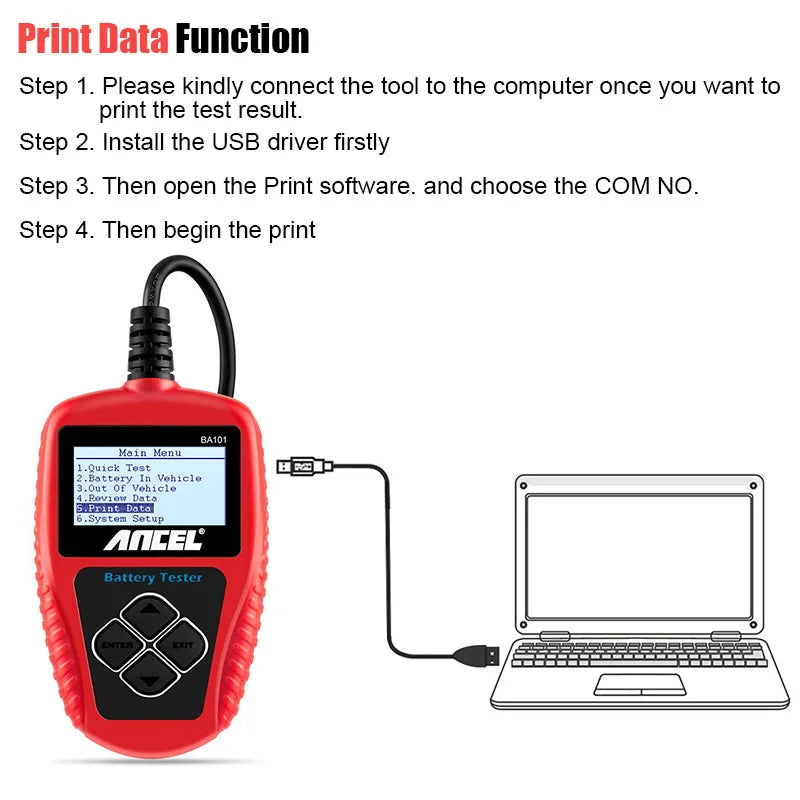

Data Storage & Print Function: Save test results for records or maintenance reports.
Specifications:
System Voltage: 12V
Input Voltage Range: 9V–15V
Power Requirements: No internal batteries required
Capacity Metrics: CCA, DIN, EN, IEC relative to battery rating
