Digital EMF Meter
Digital EMF Meter
Couldn't load pickup availability

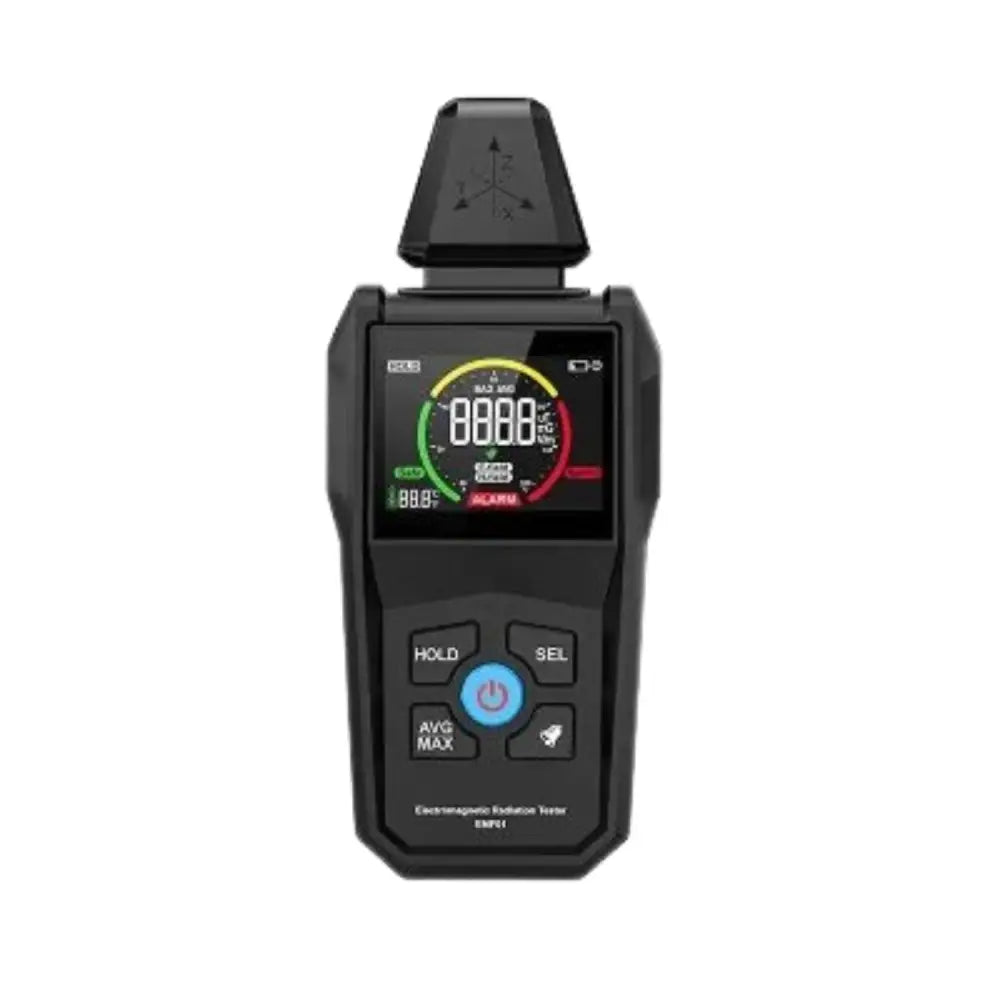

The EMF01 Digital Electromagnetic Field Radiation Tester is a reliable and compact meter designed to detect electromagnetic waves in your environment.
With its HD VA reflective colour screen, triaxial signal detection, and broad frequency range, this device is ideal for ensuring the safety of your home or workplace.
Whether you're near high-voltage equipment, base stations, or just want peace of mind in your daily environment, the EMF01 offers precise readings and durability. Its rubberized shell makes it sturdy for field use, while the auto shutdown feature ensures efficient battery usage.
Main Features
-

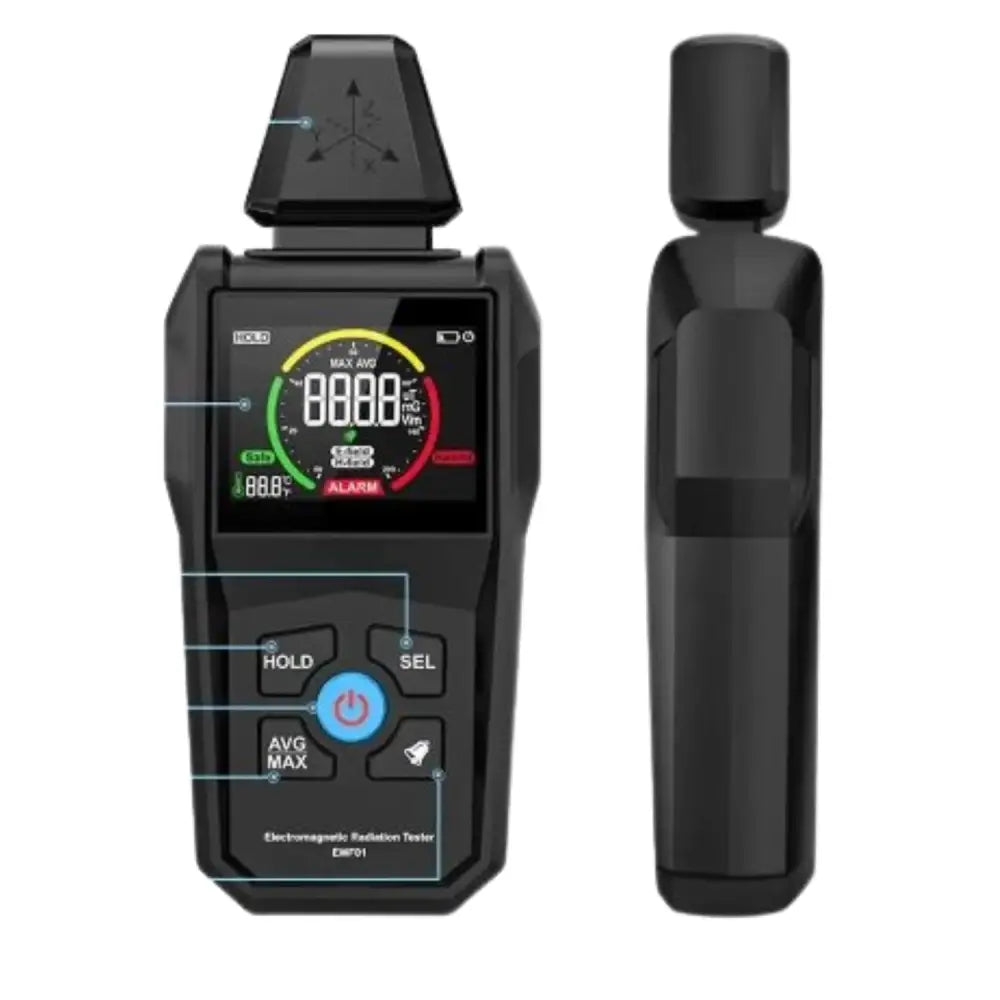

HD VA Colour Screen: Clear dual digital + analogue display for real-time data visibility
-

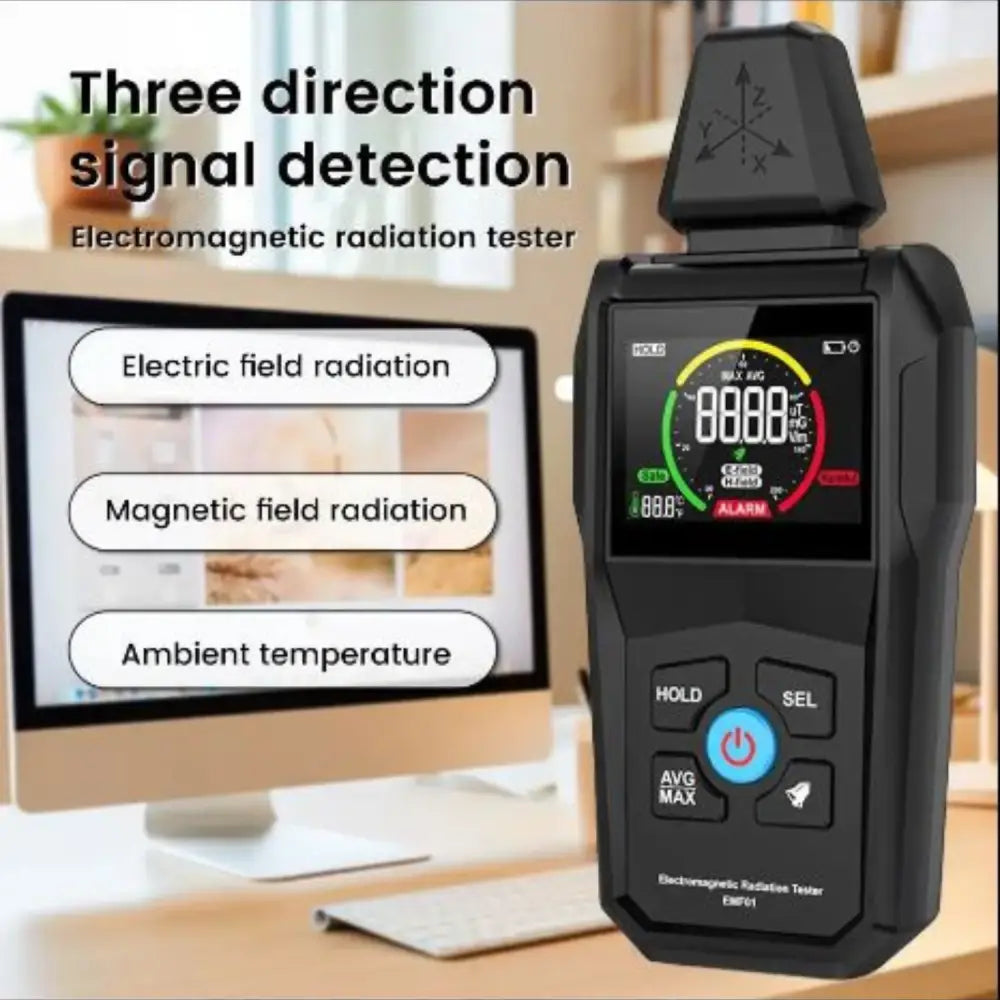

Three-Axis Detection: High-sensitivity sensor measures electromagnetic fields on X, Y, and Z axes
-
Durable Rubber Shell: Shock-proof, anti-fall housing for enhanced impact resistance and comfortable grip
-
Wide Range of Use: Suitable for homes, offices, power equipment rooms, high-speed rail stations, and base stations
-
Accurate Measurements: Measures electric and magnetic fields with high resolution and sampling rate
-
Auto Shut-Off Function: Automatically powers off after 10 minutes to conserve energy
-

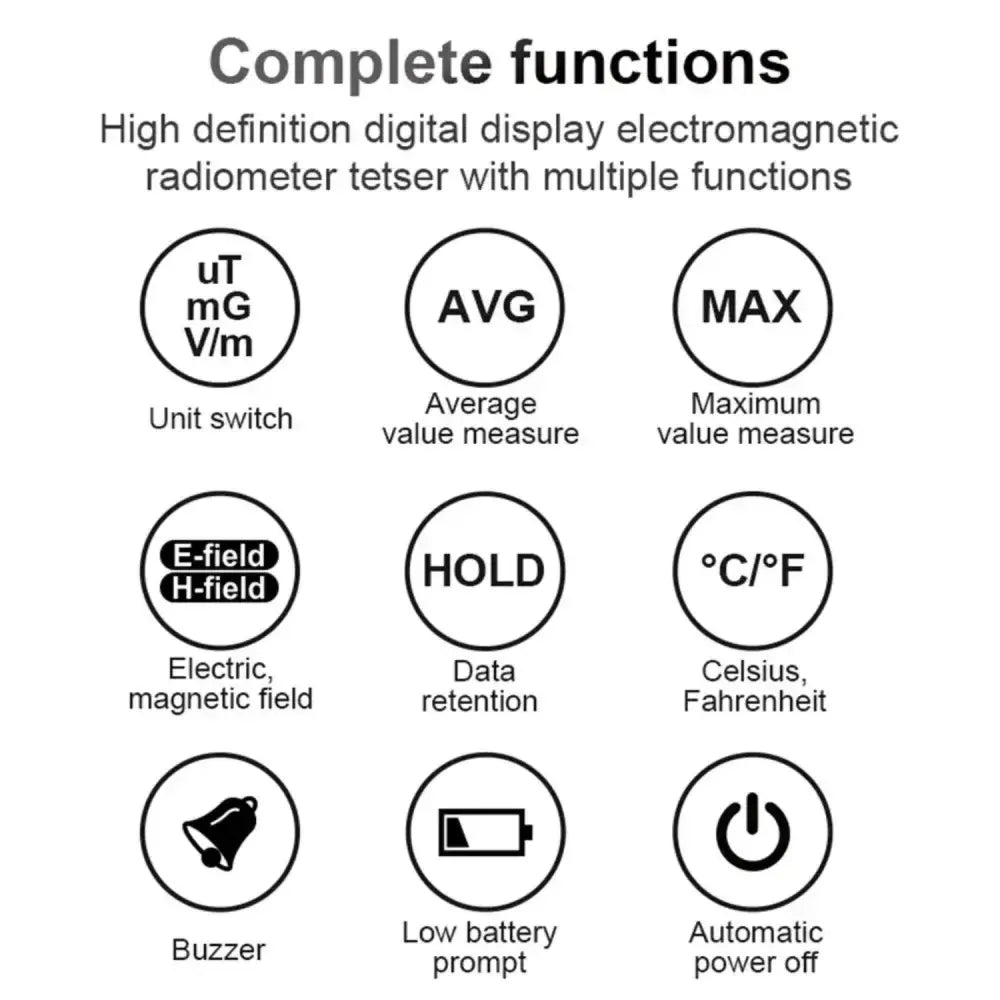

Multiple Units Display: Supports V/m, µT, and mg. readings with auto conversion
-
High Bandwidth Range: Covers frequencies from 5–3500 MHz
-
Portable Design: Comes with a storage bag and screwdriver for convenience on the go
-
User-Friendly Interface: Easy to use with intuitive controls and quick response time

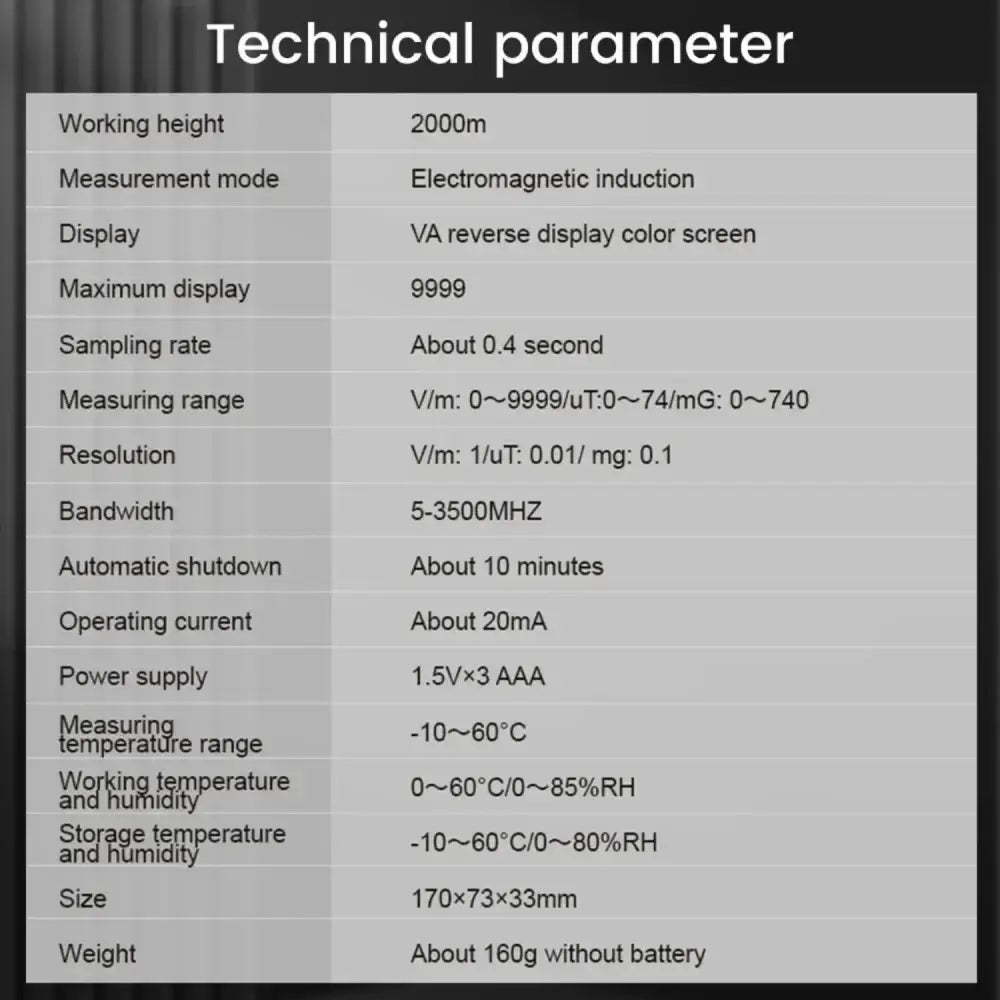

Specifications / Model Details
| Feature | Description |
|---|---|
| Model Number | EMF01 |
| Measurement Method | Electromagnetic Induction |
| Detection Axes | X, Y, Z (Three-Axis) |
| Display Type | VA Reflex HD Colour Screen |
| Measuring Range | V/m: 0–9999, µT: 0–74, mg.: 0–740 |
| Resolution | V/m: 1, µT: 0.01, mg.: 0.1 |
| Bandwidth | 5–3500 MHz |
| Max Display Value | 9999 |
| Sampling Rate | ~0.4 seconds |

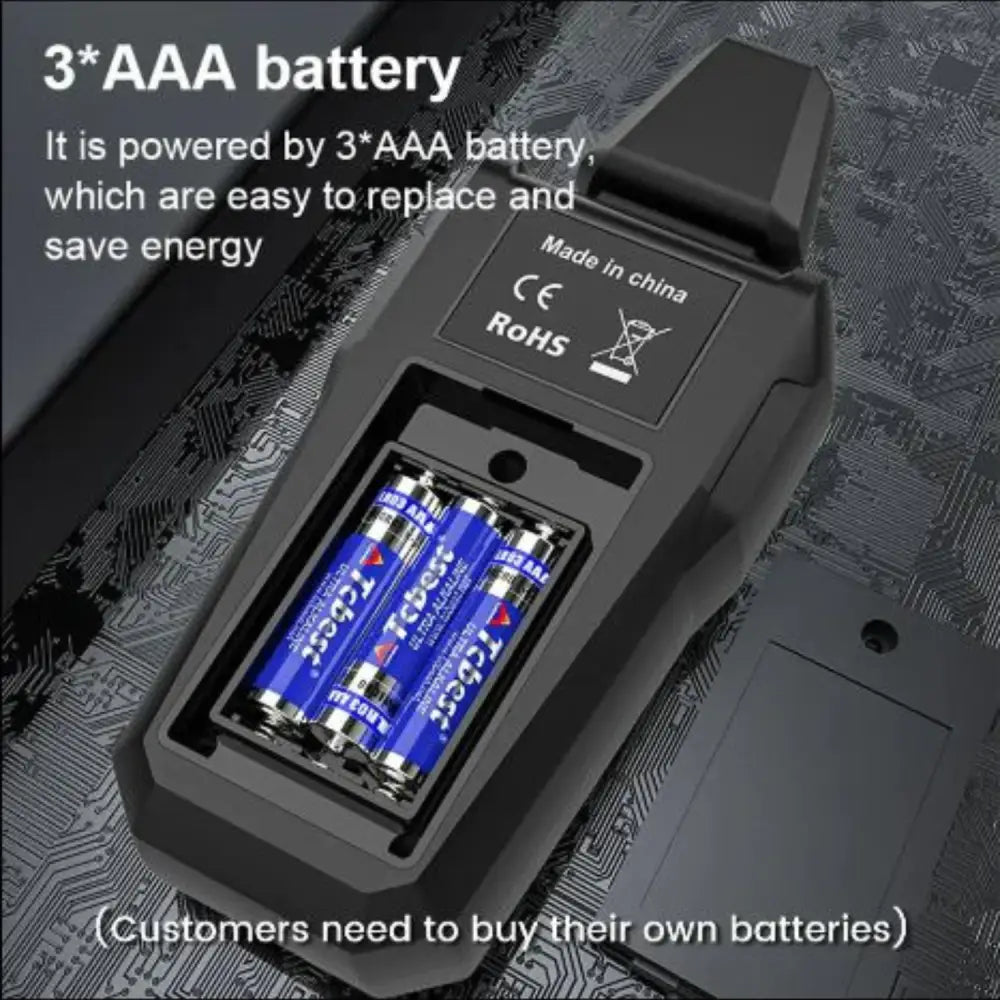

| Power Supply | 3 × AAA 1.5V Batteries (Not Included) |
| Working Height | ≤ 2000 meters |
| Working Current | Approx. 20mA |
| Auto Power Off | Yes (after ~10 minutes) |
| Temperature Range (Use) | 0–60°C |
| Temperature Range (Storage) | -10–60°C |
| Humidity Range | Use: 0–85% RH / Storage: 0–80% RH |
| Included Accessories | 1 Detector, 1 Instruction Manual, 1 Screwdriver, 1 Storage Bag |
